Asus Motherboard B85M-E CSM LGA1150 B85 PCI Express SATA USB microATX

Micro-ATX B85 features new UEFI BIOS and detailed cooling controls

  • New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
  • USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
  • Network iControl: Real-time network bandwidth management
  • Fan Xpert 2: Comprehensive controls for the perfect cool and quiet balance
  • CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
  • AI Suite 3: One-stop access to innovative ASUS features

New UEFI BIOS

New UEFI BIOS � friendlier and more intuitive

Exclusive EZ Mode adds useful info to become even easier

Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.

1. Fast Clock Adjustment

Easily change the time and date in EZ Mode using the mouse.

2. EZ XMP Settings

Quickly apply XMP settings in UEFI BIOS EZ Mode, achieving better DRAM performance.

3. EZ Fan Settings

As demanded by the community, detailed fan controls come to EZ Mode so you can switch fan profiles for quick cooling and noise-level supervision.

4. SATA Information

Displays each SATA port details for you to easily recognize devices.

My Favorites

Get all your favorite functions on one page

F4 or right click to add settings to My Favorites under Advanced Mode, which cuts time spent on searching and further speeds up system tuning.

Shortcut

One press to apply and access frequent settings

Now you can customize your own shortcut log by pressing F4 or right clicking to create shortcuts to frequently-used settings. Instantly access them by simply hitting the F3 hotkey.

Quick Note

You no longer need to have a pen and paper notepad around. Quick Note works inside the BIOS so you can just type remarks and ideas to help you remember important settings info and save time on trial and error.

Last Modified

Always forget those important BIOS changes you did? This friendly function creates a tuning log to track your BIOS settings history, which can be saved onto a USB drive.

SATA Port Renaming

You can rename your SATA ports for easy identification, including by usage scenario. Get greater convenience and spend less time on finding the right devices when you want to change settings.

Fan Xpert 2

Fan Xpert 2

Comprehensive controls for the perfect cool and quiet balance

Seeing an opportunity for more fine-tuned control, hardware-level ASUS Fan Xpert 2 featuring Fan Auto Tuning, providing an tailored fan speed setting for each fan with the exclusive, automatic fan speed detection to achieve the best balance of cooling performance and low noise. It even provides a "RPM Fixed Mode" for users who wish to reduce noise levels to near 0dB with a specific fan speed control.

Fan Auto Tuning Mode

Scans fan parameters through exclusive automatic speed detection to provide custom settings for each fan with a single click. This achieves the best cooling for your components beyond just the mere number of fans in your case. Fan Xpert 2 provides individual data and control for each fan connected to your motherboard as well as built-in fan profiles to deliver cooling that is as automated or as customizable as you need it to be.

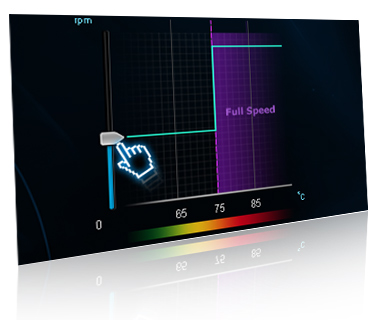

RPM Fixed Mode

Fan Xpert 2 includes an RPM Fixed Mode for users who wish to reduce noise levels to near 0dB with highly specific fan speed control. It reacts to system loads for greater response.

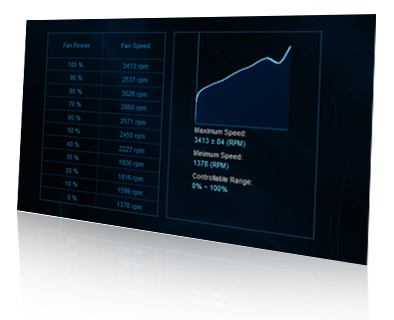

Informative fan controls

Delivers complete information that allows you to take advanced control over each fan.


Performance Optimization

USB 3.0 Boost (UASP Support)

170% faster transfer speeds than traditional USB 3.0

ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.

  • World�s 1st USB 3.0 UASP support � instantly 170% faster.
  • Complete USB 3.0 solution � performance boost under Turbo Mode or UASP Mode for most USB devices.
  • Simple plug and boost � auto detection design ensures best performance.

GPU Boost

Go to the limit with iGPU level up!

GPU Boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-wide upgrades for every use.

Network iControl

Real-time network bandwidth management

One click to prioritize network traffic for applications you're currently using or set up favorite profiles to run at specific times. Avoid network congestion, speed up downloading, and make sure online gaming runs optimized, all through an intuitive user interface.

PCI Express 3.0

PCI Express 3.0 uses improved encoding that provides twice the performance of PCI Express 2.0. Total bandwidth for an x16 link reaches 32GB/s, delivering unprecedented data speeds combined with the convenience and seamless transition offered by complete backward compatibility.


Complete USB 3.0 integration

Double USB access, double the convenience

ASUS facilitates USB 3.0 accessibility for both the front and rear panel. Experience the latest plug n play connectivity at speeds up to 10 times faster than USB 2.0. Our motherboards afford greater convenience with high speed connectivity.

SATA 6.0 Gb/s

Twice the speed

ASUS provides SATA 6.0 Gb/s ports with enhanced scalability, faster data retrieval, and double the bandwidth of SATA 3Gb/s.

EZ DIY

Q-DIMM

Easy memory removal

Even if you work with a smaller case, plugging in memory is easy with one-sided clips that are right at the edge of the board and always accessible. Just push down on the clip and push or pull RAM modules in or out � couldn�t be simpler!

Q-Slot

Effortless PCI Express component removal

Press the Q-Slot clip lightly, and graphics cards just pop out. The large winged clip is easy to reach so you don�t have to struggle with installing or removing even the biggest graphics cards.

Windows 8 Exclusive Features

ASUS Boot Setting

Multiple startup options

Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PC�s startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.
*On select models

Probe II Sense

Handy system monitoring

Popular ASUS real-time system monitoring software now available for Windows 8. It helps you supervise your entire PC through a live tile on the Windows 8 start screen, and make quick adjustments. Probe II Sense is a free app available from the Windows Store.

Additional Features

AI Suite 3

One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

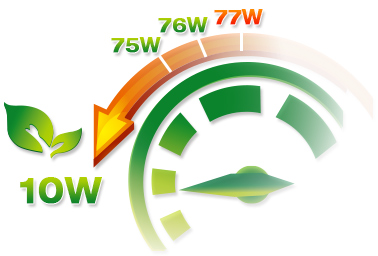

EPU

All-round energy efficiency

Tap into the world's first real-time PC power saving chip through the AI Suite 3 utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. It can directly reduce CPU wattage to an indicated level on demand and manually switch to Max Power Saving Mode for further energy savings, creating a more efficient PC. Exclusive Away Mode* puts your system into an extreme energy-saving stance, and even shuts down unused add-on I/O ports while can continue to download, stream, and backup content while away from your PC.
*Power cut-off to add-on connectors varies by model

Detailed CPU wattage settings

Away Mode � cuts off add-on IC power

CrashFree BIOS 3

Restore corrupted BIOS data from USB storage

ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash drive or support CD containing a BIOS file. This utility saves you the cost and hassle of buying a replacement BIOS chip.

EZ Flash 2

Easy BIOS updates from USB outside the OS

Quickly update your BIOS from a USB flash drive before entering the OS. It only takes a few clicks, with no floppy disk or an OS-based flash utility.

Multi-GPU/Monitors

4K Ultra HD ready

Discover future visual experiences

Following up on popular 1080p full HD, 4K Ultra HD is the next big thing, and you�re ready for the upgrade thanks to integrated graphics that natively support up to 4096 x 2160 via HDMI or DisplayPort. That�s four times the pixel count of 1080p (1920 x 1080), offering incredible visual clarity, detail, and realism.

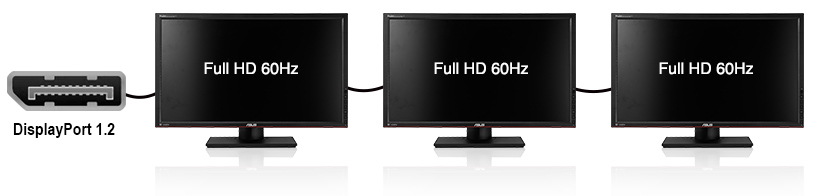

Connect up to 3 Full HD monitors via one port

DisplayPort 1.2 with Multi-Stream Transport (MST) allows you to connect up to three 1080p displays to a single output with daisy chaining, splitting the signal into three Full HD (1080p@60Hz) links.

Work with up to 3 displays

Connect up to three independent monitors at once using video outputs such as DisplayPort, Mini DisplayPort, HDMI, DVI, or VGA. Choose your outputs and set displays to either mirror mode or collage mode.

CPU and Chipset Features

Intel� LGA1150 4th Generation Core� i7/Core� i5/Core� i3/Pentium�/Celeron� Processors Ready

This motherboard supports Intel� 4th generation Core� i7/i5/i3/Pentium�/Celeron� processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel� 4th generation Core� i7/i5/i3/Pentium�/Celeron� processors are among the most powerful and energy efficient CPUs in the world.

Intel� B85 Express Chipset




The Intel� B85 Express chipset is a single-chipset design that supports socket LGA1150 4th generation Intel� Core� i7/i5/i3/Pentium�/Celeron� processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel� B85 Express chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance.

Intel� Smart Connect Technology

Auto application refresh and shorter wait times

Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience.

Intel� Rapid Start Technology

Instantly awaken your PC from sleep mode

Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving your system memory to the designated SSD, it provides your computer a faster wake-up response time, while still keeping energy use low.



Intel� SBA support

Intel � SBA (Small Business Advantage) is a combination of hardware and software that provides unique security and productivity capabilities designed for small businesses. Intel� SBA requires MEI drivers (AMT host software kit) be installed.
Platform requirements:
Windows 7/8 (32/64-bit)
Lynx Point PCH with Core� Haswell CPU (Shark Bay platforms) with 5MB ME 9.0 firmware load
CPU and chipset requirements:
Intel � Core� i3/i5/i7 with one of these chipsets: B85, H87, Q87
Intel � Core� i5/i7 vPro� with one of these chipsets: B85, H87, Q87
The Intel � Management Engine software kit must be installed (The Local Manageability Service and the Intel � Management Engine Interface must be installed and running.)
* Local Administrator rights on the target machine
* Intel � SBA does not support the 800 x 600 screen resolution.
* Some models without the 5MB ME firmware do not support Intel � SBA. Please refer to the spec sheet for details.
* Visit the ASUS website at www.asus.com for the latest CPU QVL (Qualified Vendors List).

GreenASUS

Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.

  • CPU
    Intel� Socket 1150 for 4th Generation Core� i7/Core� i5/Core� i3/Pentium�/Celeron� Processors
    Supports Intel� 22 nm CPU
    Supports Intel� Turbo Boost Technology 2.0
    * The Intel� Turbo Boost Technology 2.0 support depends on the CPU types.
  • Chipset
    Intel� B85
  • Memory
    4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Memory
    Dual Channel Memory Architecture
  • Graphic
    Integrated Graphics Processor
    Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 1600 @ 60 Hz
    Maximum shared memory of 1024 MB
  • Multi-GPU Support
    Supports AMD Quad-GPU CrossFireX� Technology
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16
    1 x PCIe 2.0 x16 (x4 mode)
    1 x PCIe 2.0 x1
    1 x PCI
  • Storage
    Intel� B85 chipset :
    2 x SATA 3Gb/s port(s), dark brown
    4 x SATA 6Gb/s port(s), yellow
  • LAN
    Realtek� 8111F, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek� ALC887-VD 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
  • USB Ports
    Intel� B85 chipset :
    4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
    Intel� B85 chipset :
    8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
  • Special Features
    ASUS EPU :
    - EPU
    GPU Boost
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - Anti-Surge
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - Network iControl
    - USB 3.0 Boost
    ASUS Quiet Thermal Solution :
    - ASUS Fan Xpert 2
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
    100% All High-quality Conductive Polymer Capacitors
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.0
    4 x USB 2.0
    1 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x TPM header
    1 x LPT1 header
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    2 x SATA 3Gb/s connector(s)
    1 x CPU Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Internal speaker connector(s)
    1 x System panel(s)
    1 x Chassis Intrusion connector(s)
    1 x Clear CMOS jumper(s)
  • BIOS
    128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
  • Manageability
    WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    ASUS Update
    Anti-virus software (OEM version)
  • Form Factor
    mATX Form Factor
    9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm )

SKU138106
Price$ 100.99
Env. Handling Fee

UPC886227490905
